Where is DVR Express Core video data stored when making recordings in Streams 7?

Where is DVR Express Core video data stored when making recordings in Streams 7?

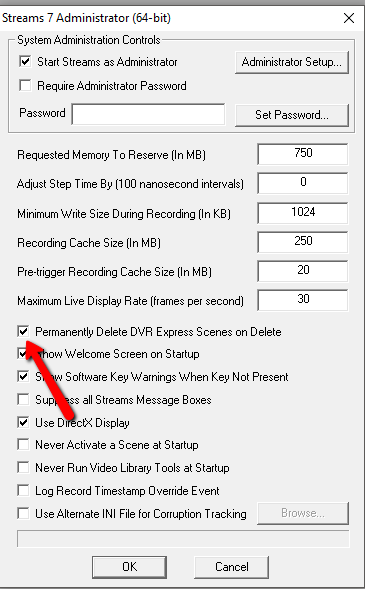

Each 'scene' in Streams 7 correlates with a recording file kept on the DVR's recording media. This means that the Streams 7 video library file (*.vl) doesn't contain the image data. By default, when you delete a scene, the corresponding reocrding file is deleted from the recording media on the DVR. The option to control this can be found in the Streams 7 Administrator application ("C:\Program Files\IO Industries\Streams7\Streams7ADMIN.EXE") as seen below.
